Edit Menu: Query Items

Next Page

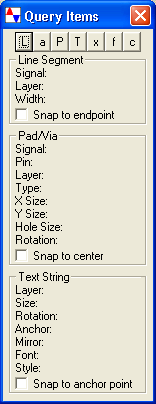

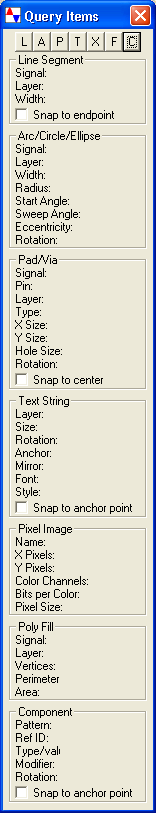

The Edit Query Items function is used to display information about various elements in the data file. A tool bar at the top indicates what object types will be searched. An upper case letter will show the group box associated with the button, while a lower case letter will hide the group box associated with the button.





Related functions:

Place Arc/circle

Grab Arc edge

Grab Arc origin

Delete Arc/circle
