Edit Menu: Pad/via

Next Page

The Edit Pad/via function is used to modify a pad, a via, or a mounting hole.

To edit a pad, you must first position the cursor somewhere within the interior of the desired element and then press <left mouse> or <Enter>.

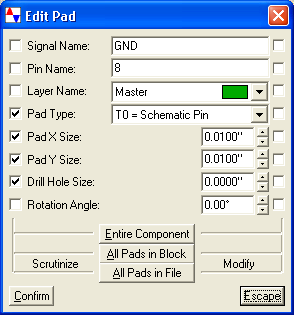

A dialog box will appear with the selected pad parameters and the permissible global editing options.


Related functions:

Place Pad

Grab Pad/via

Delete Pad/via
