Page		 Edit Menu: Pad/via Next
Page

The Edit Pad/via function is used to modify a pad, a via, or a mounting hole.

To edit a pad, you must first position the cursor somewhere within the interior of the desired element and then press <left mouse> or <Enter>.

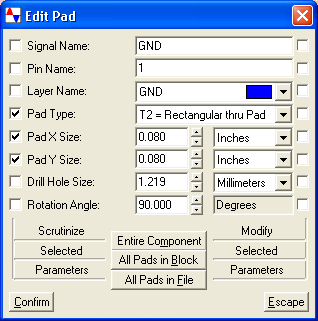

A dialog box will appear with the selected pad parameters and the permissible global editing options.

ScrutinizeCB ModifyCB EntireComponent AllPadsInBlock AllPadsInFile Scrutinize Confirm Escape Modify SignalName PinName LayerName PadType Units Value
Related functions:

Place Pad

Place Via

Grab Pad/via

Delete Pad/via
