Place Menu: Line Next
Page

The Place Line function is used to construct a straight line segment between any two points.

When you select this function, a dialog box will appear which will prompt you to enter the destination layer and line thickness.

The default line placement parameters are re-loaded each time you grab or edit an existing line segment. This feature aids in replication of existing data structures.

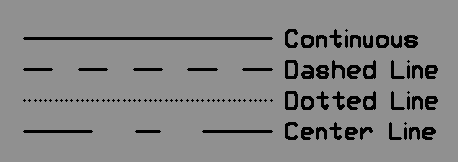

Here is a sample of the assorted drwwing styles:



Related functions:

Place Ortho-line

Place Vertex

Grab Line

Edit Line

Delete Line
