Edit Menu: Line Next
Page

The Edit Line function is used to modify line segments by changing their thickness or by transferring them to a different layer.

To edit a line segment, you must first position the cursor somewhere within the interior of the desired line segment and then press <left mouse> or <Enter>.

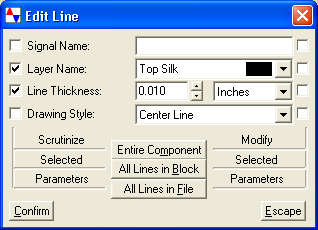

A dialog box will appear with the selected line parameters and the permissible global editing options.

In the event of multiple targets, lines on the current layer are given preference over those on other layers, and shorter lines are given preference over longer ones.

Lines contained within components are accessible only from the proper layer.





Related functions:

Place Line

Grab Line

Delete Line
