Nets Menu: Netlist In Next
Page

The Netlist In function is used to read in a netlist file from disk and add its routing information to the current data file. All existing signal names will be lost and will be replaced with those on the designated netlist file. A log file will be produced if any errors are encountered in the input stream.

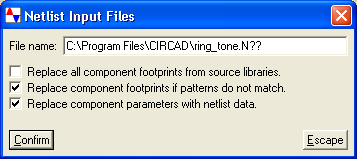

When you select this function, a dialog box will appear for the entry of the desired source netlist file name and import parameters. For multi-sheet schematics, multiple net list files can be processed in a single operation.
