Block Menu: Rectangle Next
Page

The Block Rectangle function may be used to define a rectangular containment region for the other block functions to act upon. Once defined, the block may be further confined by specifying a restricted set of source layers using the Block Layers function.

Blocks can be represented by either a sparse fill region or an animated dashed perimeter. This is selectable from the General tab of Setup Options.

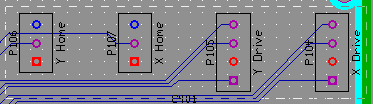

Animated perimeter

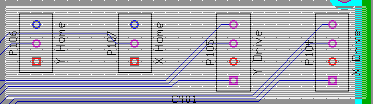

Sparse fill

A rectangular block is defined by selecting two corner points and a source reference point.

Related functions:

Block Polyline

Block Release
