Edit Menu: Text parameters Next
Page

The Edit Text parameters function is used to modify the parametric portion of a text string.

To edit a text string, you must first position the cursor somewhere within the interior of the desired text string and then press <left mouse> or <Enter>.

In the event of overlapping targets, items on the current layer or items not owned by a component are given preference.

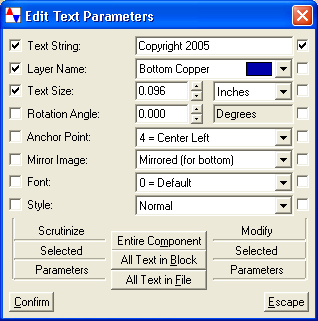

A dialog box will appear listing the selected text string parameters and the permissible global editing options.





Related functions:

Edit Text data

Place Text

Grab Text

Delete Text
