Edit Menu: Quick Zoom Next
Page

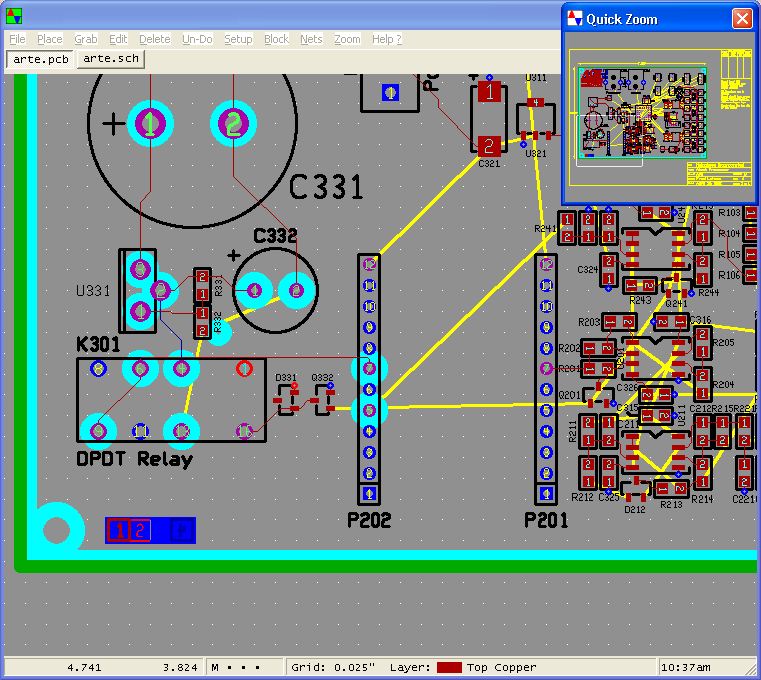

The Quick Zoom function is used to quickly zoom to see a specific area of the PCB. Zooming in or out on either the quick zoom window or the primary data file will update the other window. Alternatively, right clicking and holding will pan both drawings keeping the current zoom scale the same.



Related functions:

Zoom In

Zoom Out

Zoom Window
